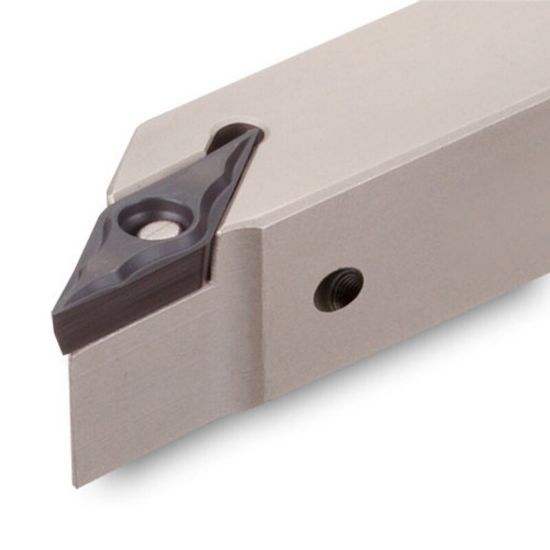

Picture of INGERSOLL BVJCR08-2C-SH Turning Stick Tool 35.0° Swiss Square 0.500 Steel

INGERSOLL BVJCR08-2C-SH Turning Stick Tool 35.0° Swiss Square 0.500 Steel

ANSI: BVJCR08-2C-SH

ISO: BVJCR08-2C-SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3606629
Delivery date: 3-5 days
$145.60

Features And Benefits

Side-hook lever holder for external turning on Swiss-type lathes Accepts 35° rhombic inserts Insert lever can be accessed from both sides of holder

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Clearance Angle 50.0°
Machine Side Connection Size 0.5000 12.70MM
Lead Angle 93°
Insert Size Ic 11 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Style VC
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
