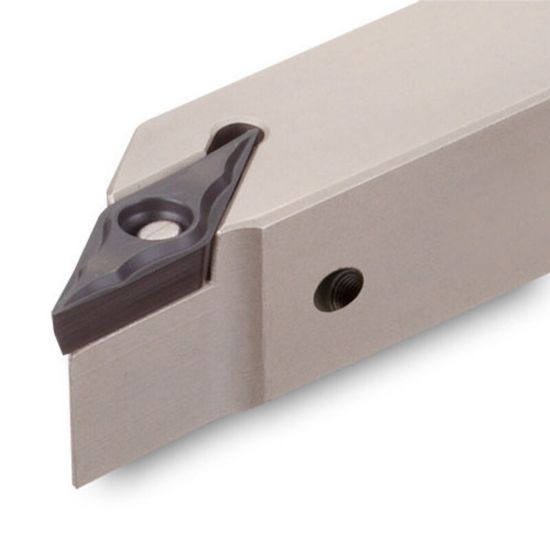

Picture of INGERSOLL BVJCL1212K11-SH Turning Stick Tool 35.0° Swiss Square 0.472 Steel

INGERSOLL BVJCL1212K11-SH Turning Stick Tool 35.0° Swiss Square 0.472 Steel

ANSI: BVJCL1212K11-SH

ISO: BVJCL1212K11-SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3605422
Delivery date: 3-5 days
$145.60

Features And Benefits

Side-hook lever holder for external turning on Swiss-type lathes Accepts 35° rhombic inserts Insert lever can be accessed from both sides of holder

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Made In USA No
Dimensional Specifications
Insert Size Ic 11 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Clearance Angle 50.0°
Overall Len 4.9213 125.00MM
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
Insert Style VC
