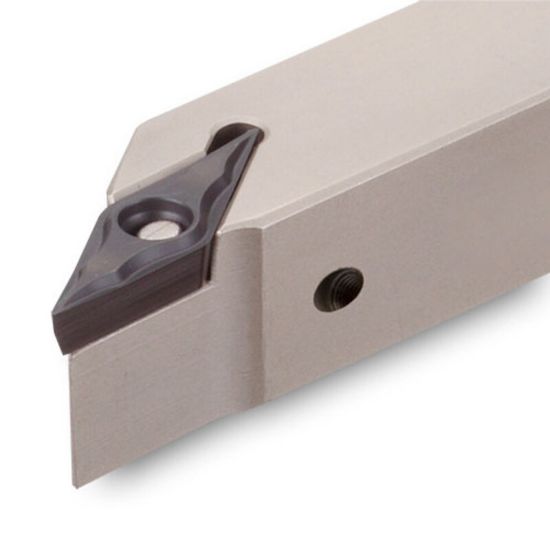

Picture of INGERSOLL BVJCL1010K11-SH Turning Stick Tool 35.0° Swiss Square 0.393 Steel

INGERSOLL BVJCL1010K11-SH Turning Stick Tool 35.0° Swiss Square 0.393 Steel

ANSI: BVJCL1010K11-SH

ISO: BVJCL1010K11-SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3606942
Delivery date: 3-5 days
$140.00

Features And Benefits

Side-hook lever holder for external turning on Swiss-type lathes Accepts 35° rhombic inserts Insert lever can be accessed from both sides of holder

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Tool Over Hang 0.7874
Lead Angle 93°
Insert Size Ic 11 "21"
Clearance Angle 50.0°
Overall Len 4.9213 125.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VC
Hand R/L Left
