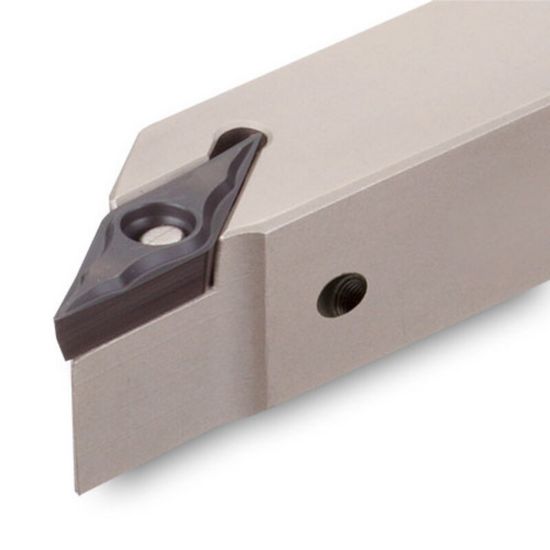

Picture of INGERSOLL BVJBR10-2C-SH Turning Stick Tool 35.0° Swiss Square 0.625 Steel

INGERSOLL BVJBR10-2C-SH Turning Stick Tool 35.0° Swiss Square 0.625 Steel

ANSI: BVJBR10-2C-SH

ISO: BVJBR10-2C-SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3606625
Delivery date: 3-5 days
$150.27

Features And Benefits

Side-hook lever holder for external turning on Swiss-type lathes Accepts 35° rhombic inserts Insert lever can be accessed from both sides of holder

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Overall Len 5.0000 127.00MM
Clearance Angle 50.0°
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VB
Hand R/L Right
