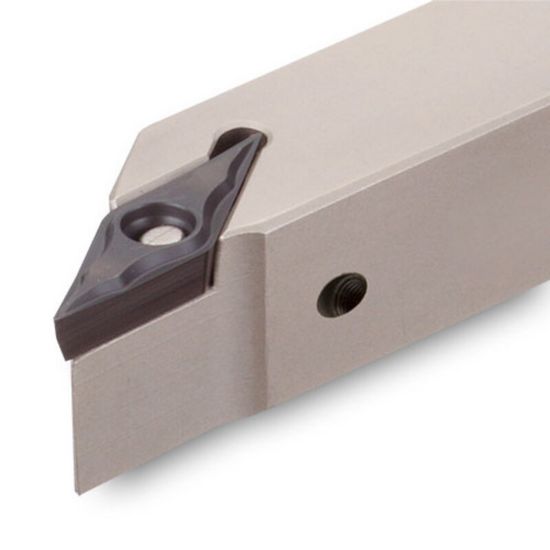

Picture of INGERSOLL BVJBR08-3C-SH Turning Stick Tool 35.0° Swiss Square 0.500 Steel

INGERSOLL BVJBR08-3C-SH Turning Stick Tool 35.0° Swiss Square 0.500 Steel

ANSI: BVJBR08-3C-SH

ISO: BVJBR08-3C-SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3607364
Delivery date: 3-5 days
$145.60

Features And Benefits

Side-hook lever holder for external turning on Swiss-type lathes Accepts 35° rhombic inserts Insert lever can be accessed from both sides of holder

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 16 "33"
Overall Len 5.0000 127.00MM
Machine Side Connection Size 0.5000 12.70MM
Tool Material Steel
Clearance Angle 50.0°
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Lead Angle 93°
Cutting & Machining Properties
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VB
