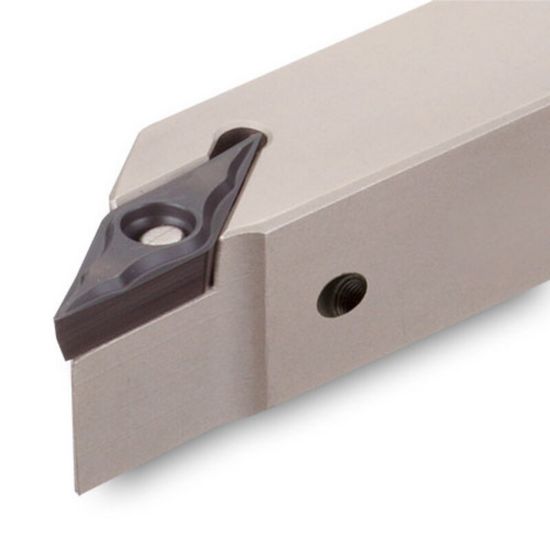

Picture of INGERSOLL BVJBL08-3C-SH Turning Stick Tool 35.0° Swiss Square 0.500 Steel

INGERSOLL BVJBL08-3C-SH Turning Stick Tool 35.0° Swiss Square 0.500 Steel

ANSI: BVJBL08-3C-SH

ISO: BVJBL08-3C-SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3607365
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Side-hook lever holder for external turning on Swiss-type lathes Accepts 35° rhombic inserts Insert lever can be accessed from both sides of holder

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Illinois
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Clearance Angle 50.0°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 16 "33"
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.5000 12.70MM
Lead Angle 93°
Cutting & Machining Properties
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
