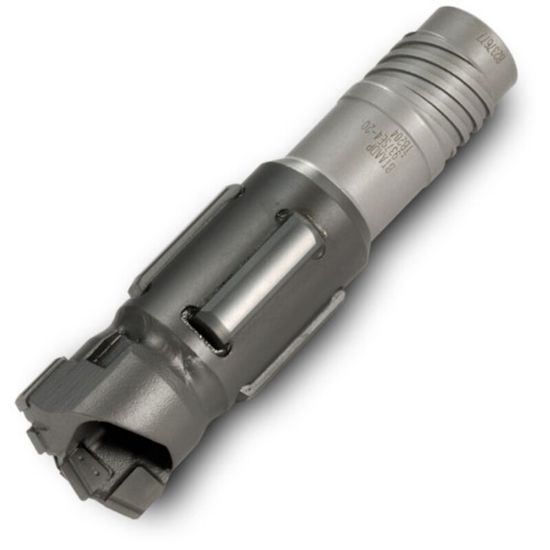

INGERSOLL BTAADP.937SE4-20 TB254 0.937 BTA Brazed|Single tube system - crosshole|External 4-start thread|.496-2.559" (12.6-65.0 mm)|

ISO: BTAADP.937SE4-20 TB254

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4855723
Delivery date: 3-5 days
$201.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Gun Drilling, Deep Hole Drilling
Grade TB254
Made In USA No
Dimensional Specifications
Cut Dia Min 0.9375 23.81MM - 15/16
Cutter Dia 0.9375 23.81MM - 15/16
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Overall Len 3.6000 91.44MM
Flutes/Inserts 1
Cutting & Machining Properties
Connection BTSI020
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Mold Yes
