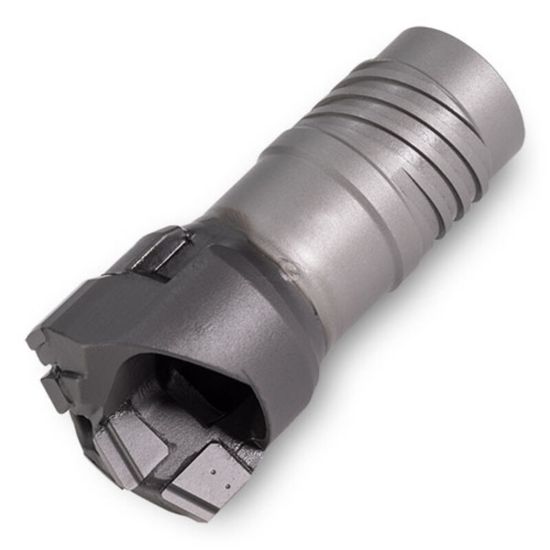

INGERSOLL BTA.937SE4-20 TB203 0.937 BTA Brazed|Single tube system|External 4-start thread|.496-2.559" (12.6-65.0 mm)|

ISO: BTA.937SE4-20 TB203

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4839087
Delivery date: 3-5 days
$121.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Gun Drilling, Deep Hole Drilling
Package Size 1
Grade TB203
Made In USA No
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 0.9375 23.81MM - 15/16
Flutes/Inserts 1
Tool Material Carbide
Cutter Dia 0.9375 23.81MM - 15/16
Overall Len 3.6000 91.44MM
Cutting & Machining Properties
Connection BTSI020
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Mold Yes
