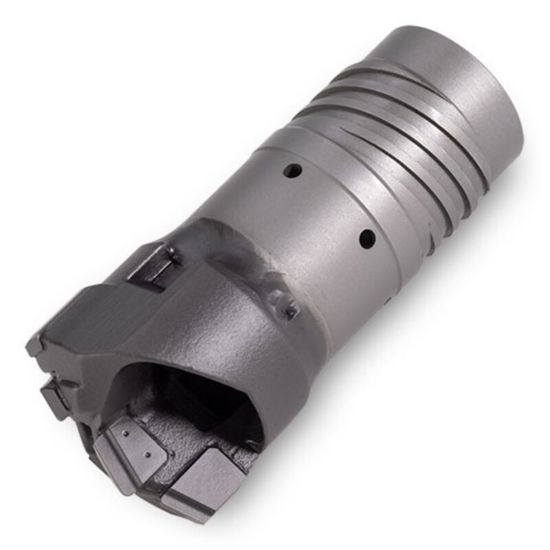

INGERSOLL BTA2.500DE4-55.5 TB253 2.5 BTA Brazed Head|Double tube system|External 4-start thread|.725-2.559" (18.4-65.0 mm)|

ISO: BTA2.500DE4-55.5 TB253

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4817528
Delivery date: 3-5 days
$307.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Grade TB253
Package Size 1
Made In USA No
Shipping State Illinois
Application Deep Hole Drilling, Gun Drilling
Dimensional Specifications
Overall Len 3.3100 84.07MM
Flutes/Inserts 1
Cutter Dia 2.5000 63.50MM - 2-1/2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cut Dia Min 2.5000 63.50MM - 2-1/2
Tool Material Carbide
Cutting & Machining Properties
Cutting Edge Mat Carbide
Connection BTDO055.5
Coolant Thru Yes
Industry-Specific Applications
Mold Yes
