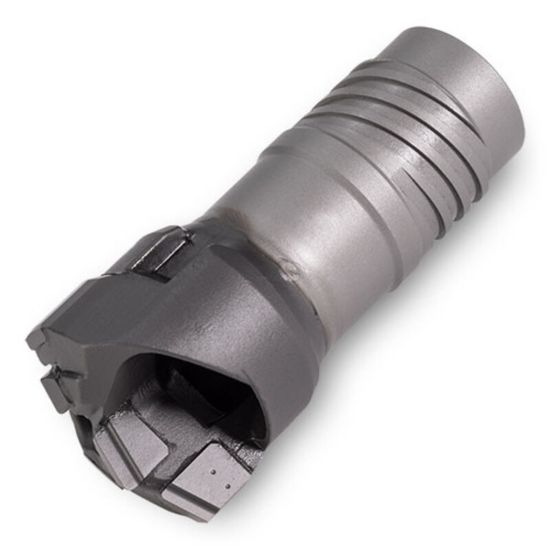

INGERSOLL BTA1.500SE4-33 TB203 1.5 BTA Brazed|Single tube system|External 4-start thread|.496-2.559" (12.6-65.0 mm)|

ISO: BTA1.500SE4-33 TB203

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING4814941
Delivery date: 3-5 days
$151.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Grade TB203
Made In USA No
Application Deep Hole Drilling, Gun Drilling
Package Size 1
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 1
Cutter Dia 1.5000 38.10MM - 1-1/2
Tool Material Carbide
Overall Len 2.8900 73.41MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Connection BTSI033
Industry-Specific Applications
Mold Yes
