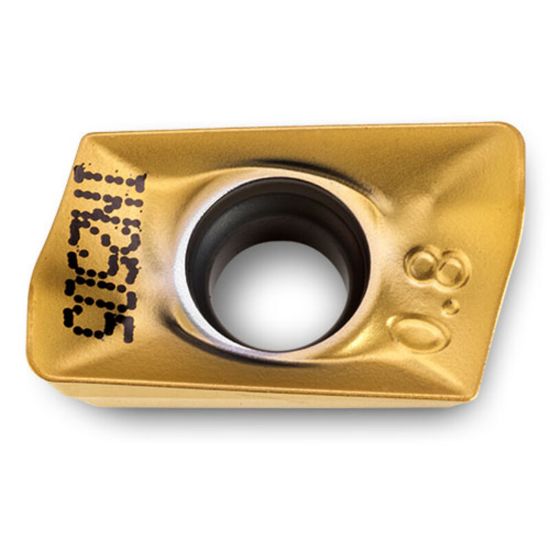

INGERSOLL BOMT130431R IN2530 Milling Insert Paralelagram 0.125 TiAIN + TiN Hipos

ANSI: BOMT130431R IN2530

ISO: BOMT130431R IN2530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5813396
Delivery date: 3-5 days
$17.01

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR STEEL,STAINLESS AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAIN + TiN
Package Size 10
Insert Type Positive
Grade IN2530
Insert/Tool Insert
Application Milling Insert
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 13
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Depth Of Cut Max 0.5460
Corner Radius 0.1250 3.18MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
Insert Style BO
