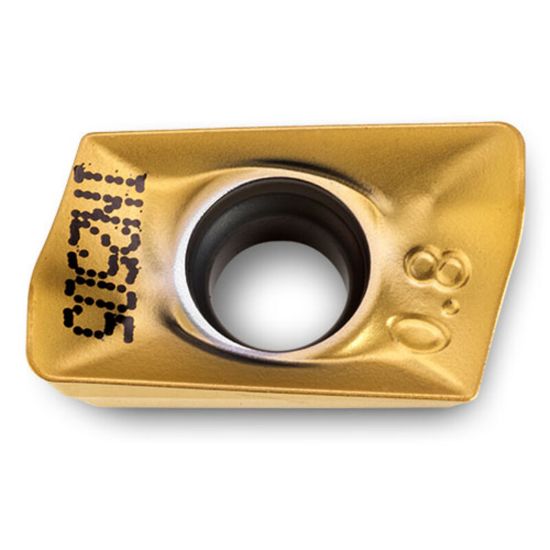

INGERSOLL BOMT130408R IN2504 Milling Insert Paralelagram 0.031 TiAIN + TiN Hipos

ANSI: BOMT130408R IN2504

ISO: BOMT130408R IN2504

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6154077
Delivery date: 3-5 days
$19.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

WEAR RESTISTANT GRADE FOR HARD STEEL

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Insert
Application Milling Insert
Made In USA No
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Coating TiAIN + TiN
Grade IN2504
Package Size 10
Dimensional Specifications
Depth Of Cut Max 0.4900
Insert Size Ic 13
Corner Radius 0.0310 0.79MM
Cut Rating <53HRC Steel
Cutting & Machining Properties
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
