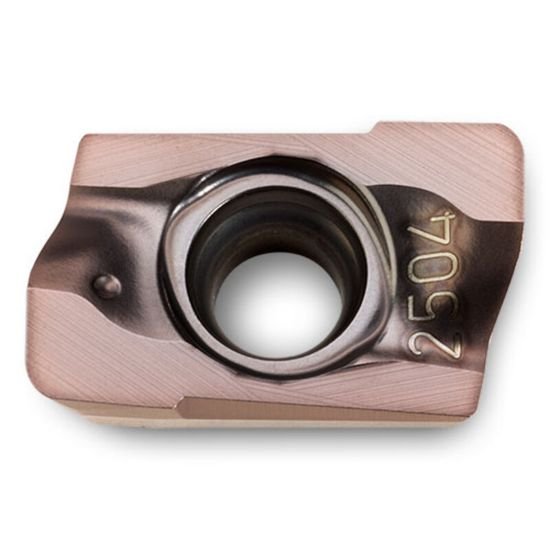

Picture of Ingersoll BODT09T320R-001 IN2005 Milling Insert Paralelagram 0.079 TiAlN Hipos

Ingersoll BODT09T320R-001 IN2005 Milling Insert Paralelagram 0.079 TiAlN Hipos

Part Number: ING5857856 ISO: BODT09T320R-001 IN2005 ANSI:BODT09T320R-001 IN2005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1006183
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
INGERSOLL 5857856 Parallelogram Insert Positive TiAlN TIALN COATED INSERT FOR SEMI HARD MATERIALS,IRON AND HIGH TEMP
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <53HRC Steel, Aluminum, Stainless Steel, Gray Iron, High Temp
Coating TiAlN
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Corner Radius 0.0790 2.01MM
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Grade IN2005
Insert Type Positive
Insert Size Ic 9
Insert Fits Parallelogram
Depth Of Cut Max 0.1200
