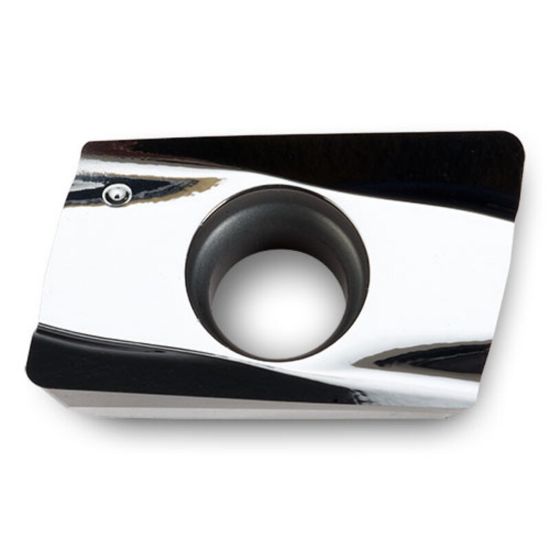

INGERSOLL BOCT130408FR-P IN10K Milling Insert Paralelagram 0.031 Hipos

ANSI: BOCT130408FR-P IN10K

ISO: BOCT130408FR-P IN10K

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5812693
Delivery date: 3-5 days
$19.73

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

UNCOATED FOR NON FERROUS

Products specifications
Attribute name Attribute value
General Product Information
Grade IN10K
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert/Tool Insert
Application Milling Insert
Insert Application Semi Finishing, Roughing
Package Size 10
Dimensional Specifications
Cut Rating Aluminum, Gray Iron, High Temp
Insert Size Ic 13
Corner Radius 0.0310 0.79MM
Depth Of Cut Max 0.5550
Cutting & Machining Properties
Insert Style BO
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
