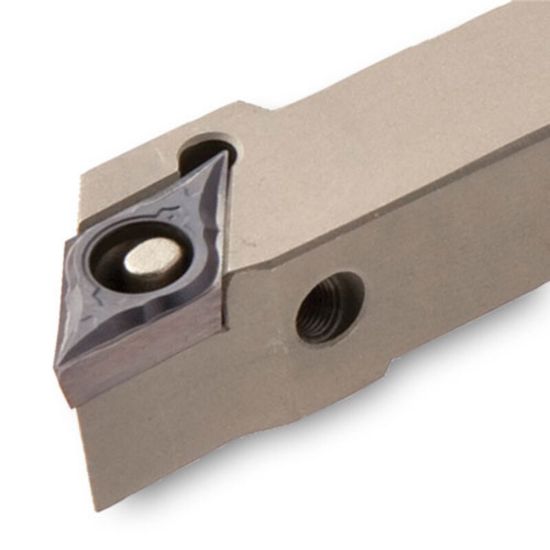

Picture of INGERSOLL BDJCL1212K07-SH Turning Stick Tool 55.0° Swiss Square 0.472 Steel

INGERSOLL BDJCL1212K07-SH Turning Stick Tool 55.0° Swiss Square 0.472 Steel

ANSI: BDJCL1212K07-SH

ISO: BDJCL1212K07-SH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3605416
Delivery date: 3-5 days
$150.27

Features And Benefits

Side-hook lever holder for external turning on Swiss-type lathes Accepts 55° rhombic inserts Insert lever can be accessed from both sides of holder

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert/Tool Tool
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Dimensional Specifications
Shank/Pilot Dia 0.4724 12.00MM
Insert Size Ic 07 "21"
Lead Angle 93°
Overall Len 4.9213 125.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.4724 12.00MM
Clearance Angle 27.0°
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Inter/Extern External
