  • INGERSOLL AX2Q-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 3 Flute Coolant 0.83 Max DOC 2.375 OAL

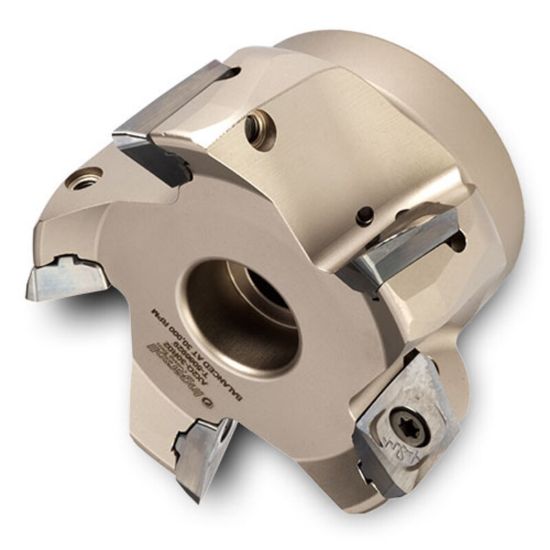

Picture of INGERSOLL AX2Q-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 3 Flute Coolant 0.83 Max DOC 2.375 OAL

INGERSOLL AX2Q-40R01 Milling Cutter 90.0° 4.000 Shell Arbor 1.5000 3 Flute Coolant 0.83 Max DOC 2.375 OAL

ANSI: AX2Q-40R01

ISO: AX2Q-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914659
Delivery date: 3-5 days
$770.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Face Milling, Slot Milling
Shipping State Illinois
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Cutter Dia 4.0000 101.60MM
Flutes/Inserts 3
Tool Material Steel
Depth Of Cut Max 0.8300
Machine Side Connection Type Face Mill/Shell Mill
Insert Size Ic 32
Machine Side Connection Size 1.5000 38.10MM
Cut Dia Min 4.0000 101.60MM
Overall Len 2.3750 60.33MM
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 3.00°
Insert Shape/Cutter Pocket Shape Other
Insert Style XE
