  • INGERSOLL AX2Q-30R02 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.83 Max DOC 2.000 OAL

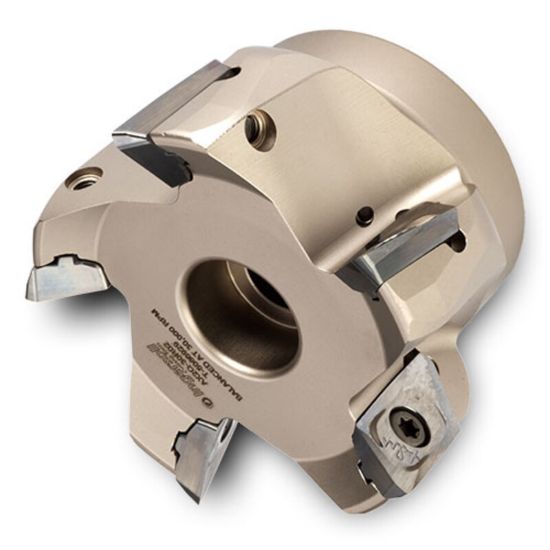

Picture of INGERSOLL AX2Q-30R02 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.83 Max DOC 2.000 OAL

INGERSOLL AX2Q-30R02 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.83 Max DOC 2.000 OAL

ANSI: AX2Q-30R02

ISO: AX2Q-30R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914658
Delivery date: 3-5 days
$775.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cutter Dia 3.0000 76.20MM
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 31
Depth Of Cut Max 0.8300
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XE
Max Ramp Angle 5.00°
