  • INGERSOLL AX2Q-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 4 Flute Coolant 0.83 Max DOC 2.000 OAL

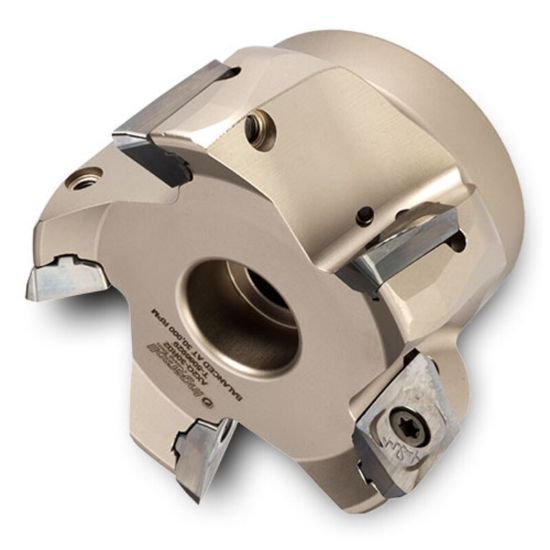

Picture of INGERSOLL AX2Q-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 4 Flute Coolant 0.83 Max DOC 2.000 OAL

INGERSOLL AX2Q-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 4 Flute Coolant 0.83 Max DOC 2.000 OAL

ANSI: AX2Q-25R02

ISO: AX2Q-25R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914656
Delivery date: 3-5 days
$645.87

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Face Milling, Side Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Tool Material Steel
Overall Len 2.0000 50.80MM
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 29
Depth Of Cut Max 0.8300
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutting & Machining Properties
Insert Style XE
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Max Ramp Angle 6.00°
