  • INGERSOLL AX2Q-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.83 Max DOC 2.000 OAL

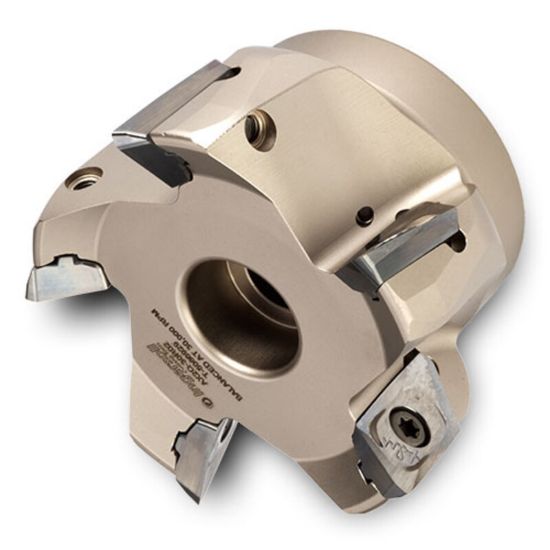

Picture of INGERSOLL AX2Q-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.83 Max DOC 2.000 OAL

INGERSOLL AX2Q-20R02 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.83 Max DOC 2.000 OAL

ANSI: AX2Q-20R02

ISO: AX2Q-20R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914654
Delivery date: 3-5 days
$560.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.8300
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 3
Insert Size Ic 27
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XE
Max Ramp Angle 8.00°
Coolant Thru Yes
