  • INGERSOLL AX2Q-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 2 Flute Coolant 0.83 Max DOC 2.000 OAL

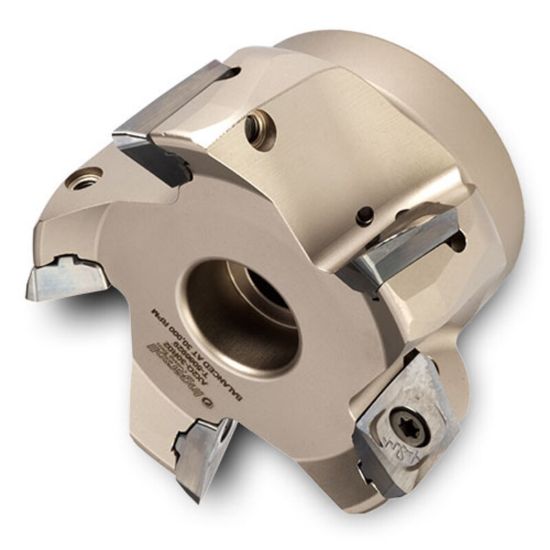

Picture of INGERSOLL AX2Q-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 2 Flute Coolant 0.83 Max DOC 2.000 OAL

INGERSOLL AX2Q-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 2 Flute Coolant 0.83 Max DOC 2.000 OAL

ANSI: AX2Q-20R01

ISO: AX2Q-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914653
Delivery date: 3-5 days
$537.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 2
Cut Dia Min 2.0000 50.80MM
Insert Size Ic 26
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.8300
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
Insert Style XE
Max Ramp Angle 8.00°
