  • INGERSOLL AX2K-30R02 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.63 Max DOC 2.000 OAL

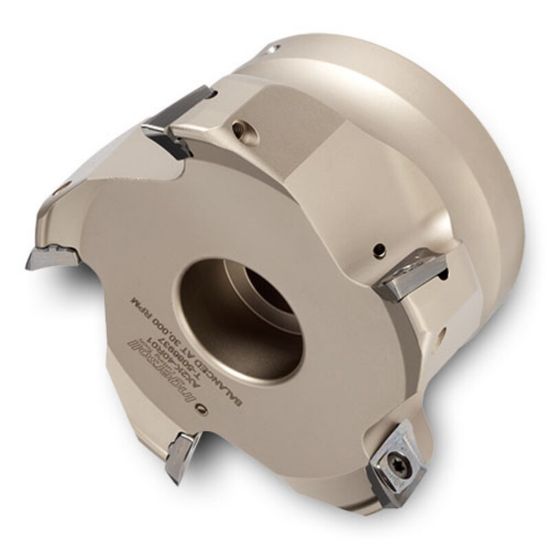

Picture of INGERSOLL AX2K-30R02 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.63 Max DOC 2.000 OAL

INGERSOLL AX2K-30R02 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 5 Flute Coolant 0.63 Max DOC 2.000 OAL

ANSI: AX2K-30R02

ISO: AX2K-30R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914645
Delivery date: 3-5 days
$776.53

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.6300
Cutter Dia 3.0000 76.20MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Max Ramp Angle 4.00°
Insert Style XE
