  • INGERSOLL AX2K-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 3 Flute Coolant 0.63 Max DOC 2.000 OAL

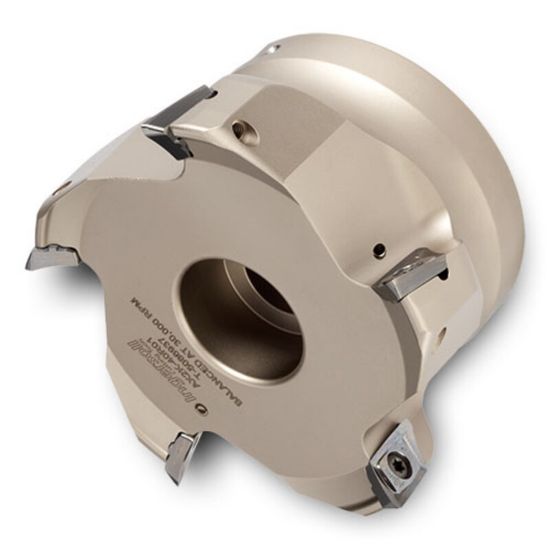

Picture of INGERSOLL AX2K-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 3 Flute Coolant 0.63 Max DOC 2.000 OAL

INGERSOLL AX2K-30R01 Milling Cutter 90.0° 3.000 Shell Arbor 1.0000 3 Flute Coolant 0.63 Max DOC 2.000 OAL

ANSI: AX2K-30R01

ISO: AX2K-30R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914644
Delivery date: 3-5 days
$670.13

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Side Milling, Face Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.6300
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutter Dia 3.0000 76.20MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XE
Coolant Thru Yes
Max Ramp Angle 4.00°
