  • INGERSOLL AX2K-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 4 Flute Coolant 0.63 Max DOC 2.250 OAL

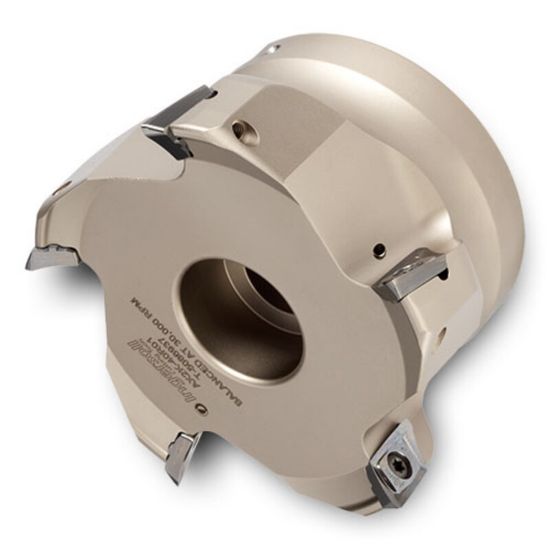

Picture of INGERSOLL AX2K-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 4 Flute Coolant 0.63 Max DOC 2.250 OAL

INGERSOLL AX2K-25R02 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 4 Flute Coolant 0.63 Max DOC 2.250 OAL

ANSI: AX2K-25R02

ISO: AX2K-25R02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2917069
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Slot Milling, Face Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Depth Of Cut Max 0.6300
Overall Len 2.2500 57.15MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Insert Size Ic 16
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style XE
Max Ramp Angle 8.00°
Coolant Thru Yes
