  • INGERSOLL AX2K-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 3 Flute Coolant 0.63 Max DOC 2.000 OAL

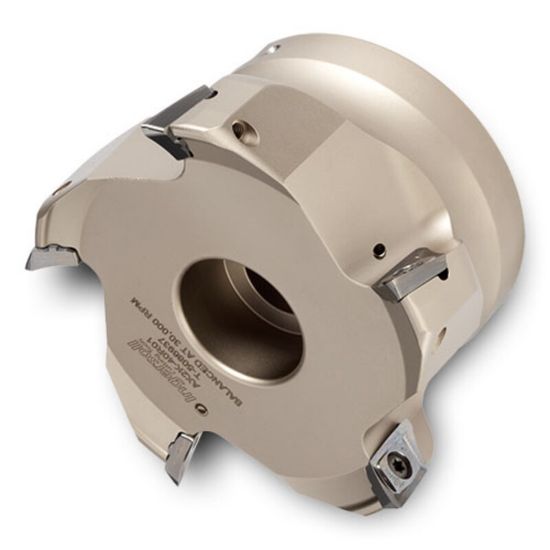

Picture of INGERSOLL AX2K-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 3 Flute Coolant 0.63 Max DOC 2.000 OAL

INGERSOLL AX2K-25R01 Milling Cutter 90.0° 2.500 Shell Arbor 1.0000 3 Flute Coolant 0.63 Max DOC 2.000 OAL

ANSI: AX2K-25R01

ISO: AX2K-25R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914643
Delivery date: 3-5 days
$609.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 16
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutter Dia 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.6300
Flutes/Inserts 3
Cutting & Machining Properties
Max Ramp Angle 5.00°
Coolant Thru Yes
Insert Style XE
Insert Shape/Cutter Pocket Shape Other
