  • INGERSOLL AX2K-20R03 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.63 Max DOC 2.250 OAL

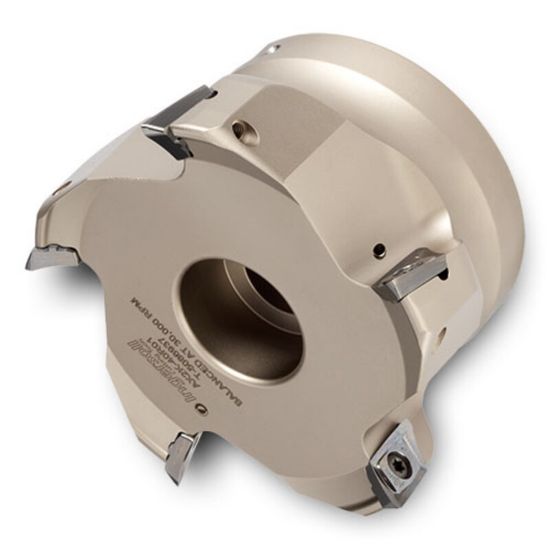

Picture of INGERSOLL AX2K-20R03 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.63 Max DOC 2.250 OAL

INGERSOLL AX2K-20R03 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 3 Flute Coolant 0.63 Max DOC 2.250 OAL

ANSI: AX2K-20R03

ISO: AX2K-20R03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2917068
Delivery date: 3-5 days
$564.67

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.6300
Overall Len 2.2500 57.15MM
Cut Dia Min 2.0000 50.80MM
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 2.0000 50.80MM
Insert Size Ic 16
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru Yes
Max Ramp Angle 10.50°
Insert Style XE
