  • INGERSOLL AX2K-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 2 Flute Coolant 0.63 Max DOC 2.000 OAL

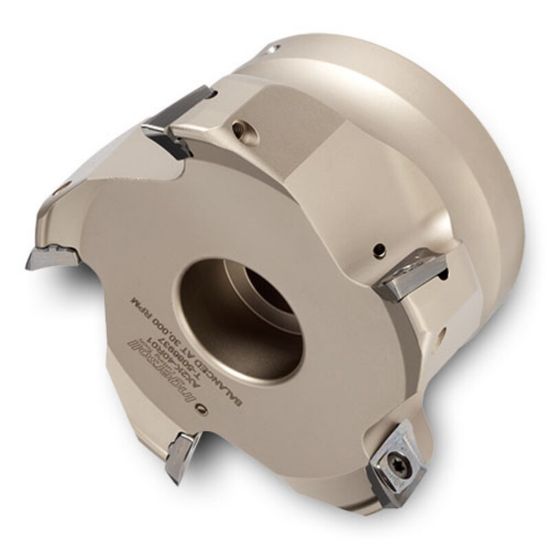

Picture of INGERSOLL AX2K-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 2 Flute Coolant 0.63 Max DOC 2.000 OAL

INGERSOLL AX2K-20R01 Milling Cutter 90.0° 2.000 Shell Arbor 0.7500 2 Flute Coolant 0.63 Max DOC 2.000 OAL

ANSI: AX2K-20R01

ISO: AX2K-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2914641
Delivery date: 3-5 days
$514.27

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 16
Cut Dia Min 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Depth Of Cut Max 0.6300
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style XE
Max Ramp Angle 6.80°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Other
