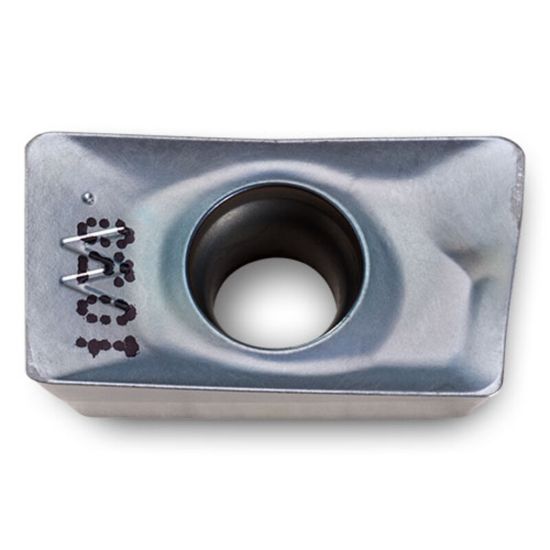

INGERSOLL APKT160408R-W IN5015 Milling Insert Paralelagram 0.031 TiN + TiCN Hipos

ANSI: APKT160408R-W IN5015

ISO: APKT160408R-W IN5015

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5803162
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Designed for multiple materials and applications.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Coating TiN + TiCN
Package Size 10
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Milling Insert
Grade IN5015
Insert Type Positive
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Depth Of Cut Max 0.6000
Insert Size Ic 16
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
