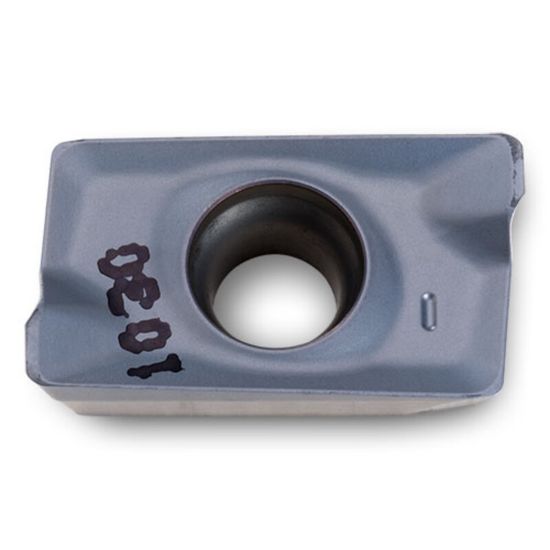

INGERSOLL APKT160408R IN40P Milling Insert Paralelagram 0.031 Hipos

ANSI: APKT160408R IN40P

ISO: APKT160408R IN40P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5800685
Delivery date: 3-5 days
$15.69

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Multi-purpose grade.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Grade IN40P
Shipping State Illinois
Package Size 10
Made In USA No
Insert/Tool Insert
Application Milling Insert
Dimensional Specifications
Insert Size Ic 16
Depth Of Cut Max 0.6000
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
Cutting Edge Mat Carbide
