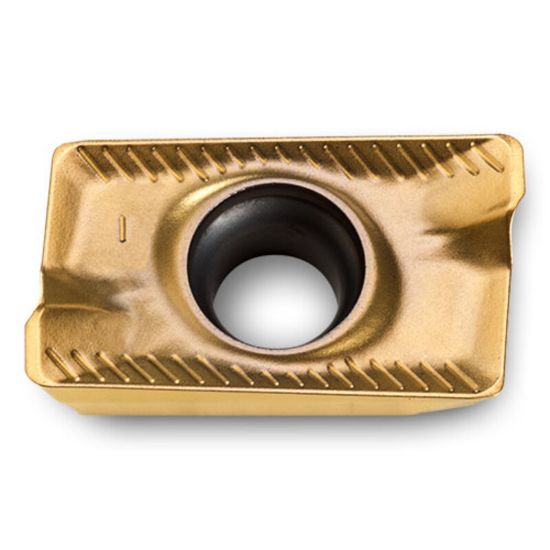

INGERSOLL APKT160408R-HR IN2510 Milling Insert Paralelagram 0.031 TiAIN + TiN Hipos

ANSI: APKT160408R-HR IN2510

ISO: APKT160408R-HR IN2510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6196940
Delivery date: 3-5 days
$14.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

HARD GRADE FOR STEEL,STAINLESS,IRON AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Milling Insert
Insert Application Roughing, Semi Finishing
Made In USA No
Coating TiAIN + TiN
Package Size 10
Grade IN2510
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Insert Size Ic 16
Depth Of Cut Max 0.6000
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Graphite
Corner Radius 0.0310 0.79MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
