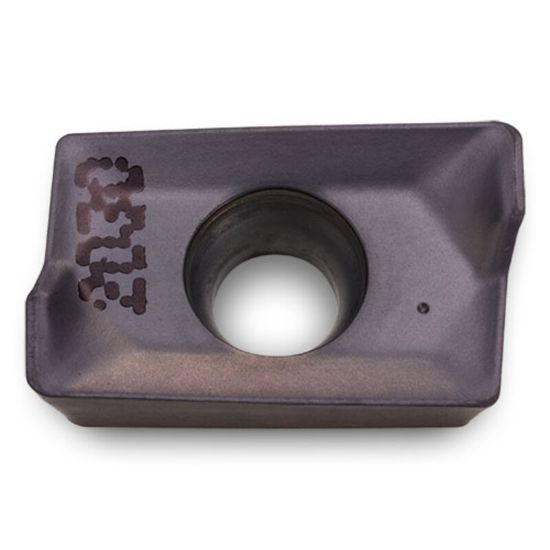

INGERSOLL APKT120324R IN40P Milling Insert Paralelagram 0.093 Hipos

ANSI: APKT120324R IN40P

ISO: APKT120324R IN40P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5800681
Delivery date: 3-5 days
$12.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Multi-purpose grade.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Milling Insert
Insert Type Positive
Package Size 10
Grade IN40P
Dimensional Specifications
Insert Size Ic 12
Cut Rating <40HRC Steel, Ductile Iron
Depth Of Cut Max 0.4900
Corner Radius 0.0930 2.36MM
Cutting & Machining Properties
Insert Style AP
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Parallelogram
