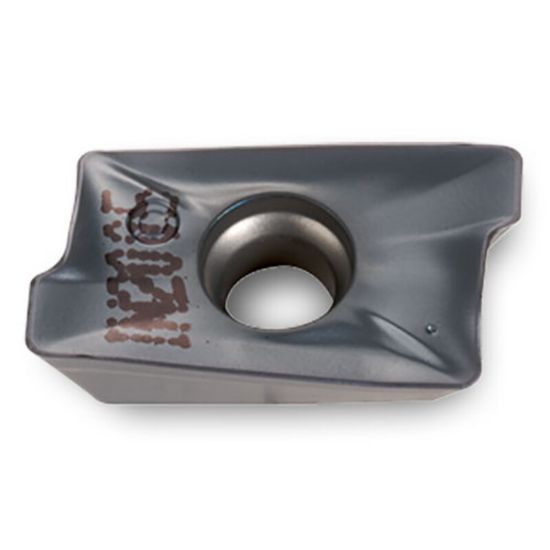

INGERSOLL AOMT180532R IN2030 Milling Insert Paralelagram 0.125 TiAlN Hipos

ANSI: AOMT180532R IN2030

ISO: AOMT180532R IN2030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5805673
Delivery date: 3-5 days
$18.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TIALN COATED INSERT FOR STEEL,STAINLESS AND HIGH TEMP GOOD TOUGHNESS

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Application Milling Insert
Insert Type Positive
Grade IN2030
Coating TiAlN
Package Size 10
Dimensional Specifications
Insert Size Ic 18
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Corner Radius 0.1250 3.18MM
Depth Of Cut Max 0.7650
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Cutting Edge Mat Carbide
