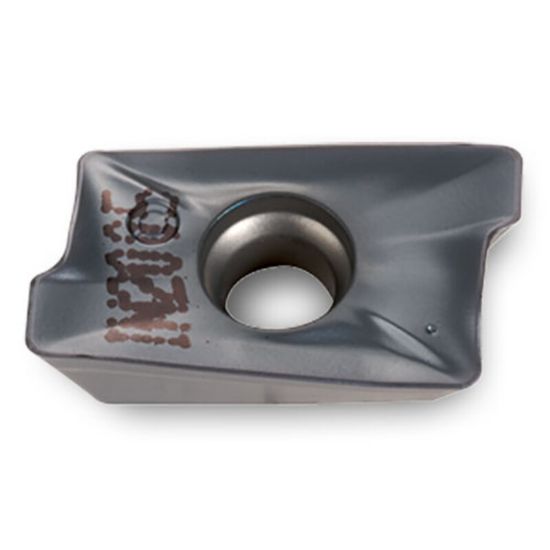

INGERSOLL AOMT180508R IN2040 Milling Insert Paralelagram 0.031 TiAlN Hipos

ANSI: AOMT180508R IN2040

ISO: AOMT180508R IN2040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5804904
Delivery date: 3-5 days
$18.29

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR STEEL AND DUTILE IRON

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Insert
Grade IN2040
Insert Type Positive
Application Milling Insert
Coating TiAlN
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 18
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.0310 0.79MM
Depth Of Cut Max 0.6600
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Cutting Edge Mat Carbide
