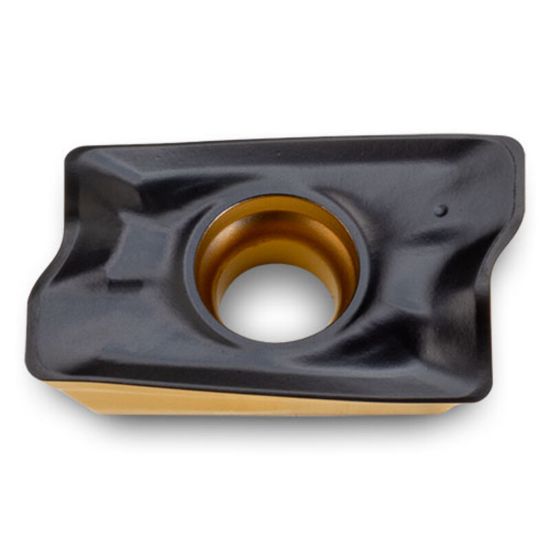

INGERSOLL AOMT170564R IN2510 Milling Insert Paralelagram 0.250 TiAIN + TiN Hipos

ANSI: AOMT170564R IN2510

ISO: AOMT170564R IN2510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5874277
Delivery date: 3-5 days
$17.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

HARD GRADE FOR STEEL,STAINLESS,IRON AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Grade IN2510
Insert Application Roughing, Semi Finishing
Made In USA No
Coating TiAIN + TiN
Package Size 10
Insert/Tool Insert
Insert Type Positive
Application Milling Insert
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.2500 6.35MM
Depth Of Cut Max 0.6690
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Graphite
Insert Size Ic 17
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Cutting Edge Mat Carbide
