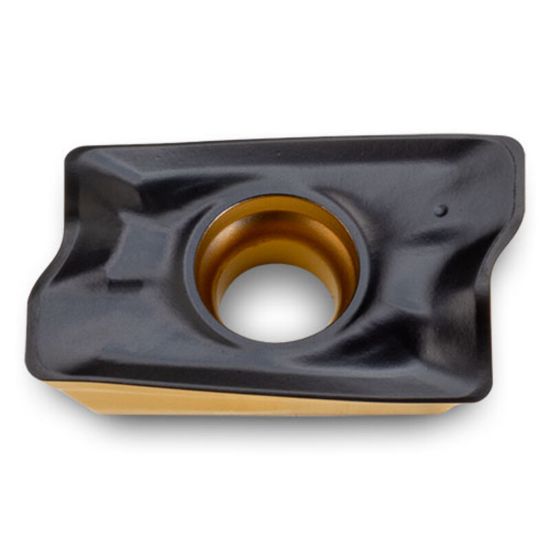

INGERSOLL AOMT170532R IN2540 Milling Insert Paralelagram 0.125 TiAIN + TiN Hipos

ANSI: AOMT170532R IN2540

ISO: AOMT170532R IN2540

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5874360
Delivery date: 3-5 days
$17.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR STEEL,STAINLESS

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Coating TiAIN + TiN
Insert/Tool Insert
Application Milling Insert
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Grade IN2540
Package Size 10
Dimensional Specifications
Depth Of Cut Max 0.6060
Insert Size Ic 17
Cut Rating <30HRC Steel, Stainless Steel
Corner Radius 0.1250 3.18MM
Cutting & Machining Properties
Insert Style AO
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Parallelogram
