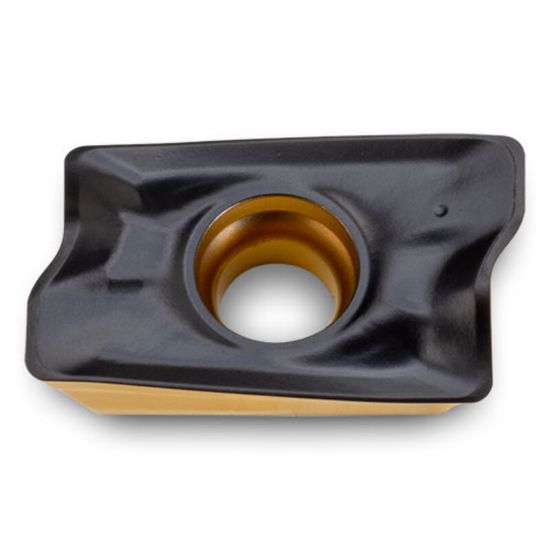

INGERSOLL AOMT170510R IN2530 Milling Insert Paralelagram 0.039 TiAIN + TiN Hipos

ANSI: AOMT170510R IN2530

ISO: AOMT170510R IN2530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5874488
Delivery date: 3-5 days
$17.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR STEEL,STAINLESS AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Insert/Tool Insert
Application Milling Insert
Coating TiAIN + TiN
Package Size 10
Grade IN2530
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0390 0.99MM
Insert Size Ic 17
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Depth Of Cut Max 0.6330
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Cutting Edge Mat Carbide
