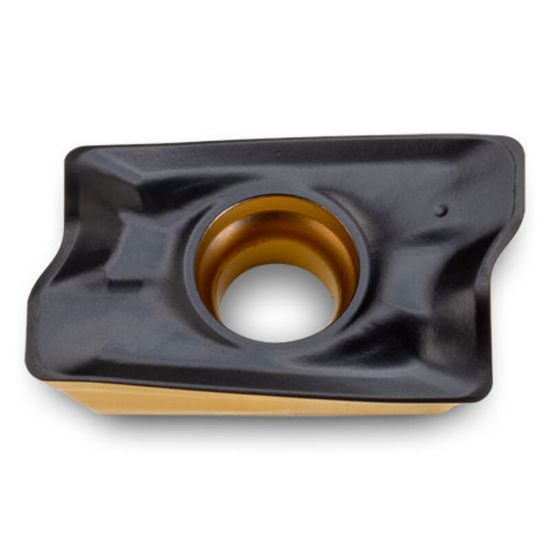

INGERSOLL AOMT170508R IN2510 Milling Insert Paralelagram 0.031 TiAIN + TiN Hipos

ANSI: AOMT170508R IN2510

ISO: AOMT170508R IN2510

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5873039
Delivery date: 3-5 days
$17.09

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL

Grade and Coating Description

HARD GRADE FOR STEEL,STAINLESS,IRON AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Milling Insert
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Coating TiAIN + TiN
Package Size 10
Grade IN2510
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 17
Corner Radius 0.0310 0.79MM
Depth Of Cut Max 0.6330
Cut Rating >50HRC Steel, Ductile Iron, Gray Iron, Graphite
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Cutting Edge Mat Carbide
