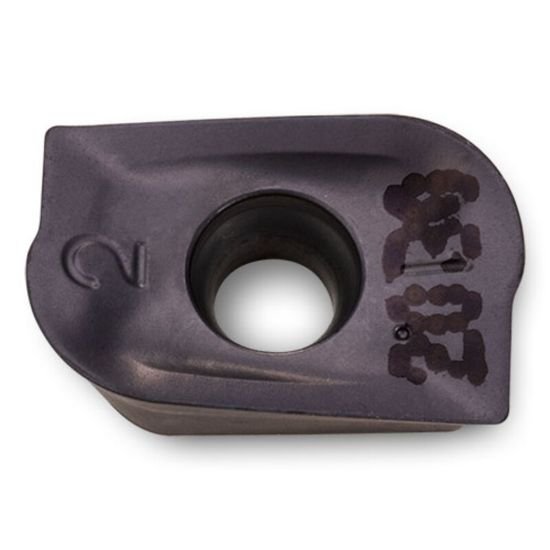

Picture of Ingersoll AOMT10332R IN1030 Milling Insert Paralelagram 0.125 TiCN Hipos

Ingersoll AOMT10332R IN1030 Milling Insert Paralelagram 0.125 TiCN Hipos

Part Number: ING5809758 ISO: AOMT110332R IN1030 ANSI:AOMT110332R IN1030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1005923
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
This product has a minimum quantity of 10
INGERSOLL 5809758 Parallelogram Insert Positive TiCN GENERAL PURPOSE GRADE FOR ALL METALS
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, High Temp
Coating TICN
Insert/Tool INSERT
Cut Type Roughing, Semi Finishing
Corner Radius 0.1250 3.18MM
Insert Style AO
Insert Shape/Cutter Pocket Shape Parallelogram
Grade IN1030
Insert Type Positive
Insert Size Ic 11
Insert Fits Parallelogram
Depth Of Cut Max 0.4800
