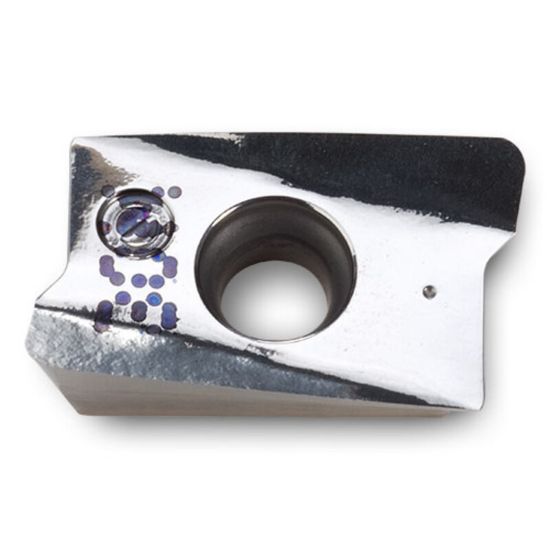

Picture of INGERSOLL AOCT110308FR-P IN30M Milling Insert Paralelagram 0.031 Hipos

INGERSOLL AOCT110308FR-P IN30M Milling Insert Paralelagram 0.031 Hipos

ANSI: AOCT110308FR-P IN30M

ISO: AOCT110308FR-P IN30M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5809763
Delivery date: 3-5 days
$19.32

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TOUGH GRADE FOR ALUMINUM,IRON,HIGH TEMP UNCOATED

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application Roughing, Semi Finishing
Grade IN30M
Package Size 10
Insert/Tool Insert
Application Milling Insert
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 11
Corner Radius 0.0310 0.79MM
Depth Of Cut Max 0.4700
Cut Rating Aluminum, Gray Iron, High Temp
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AO
Cutting Edge Mat Carbide
