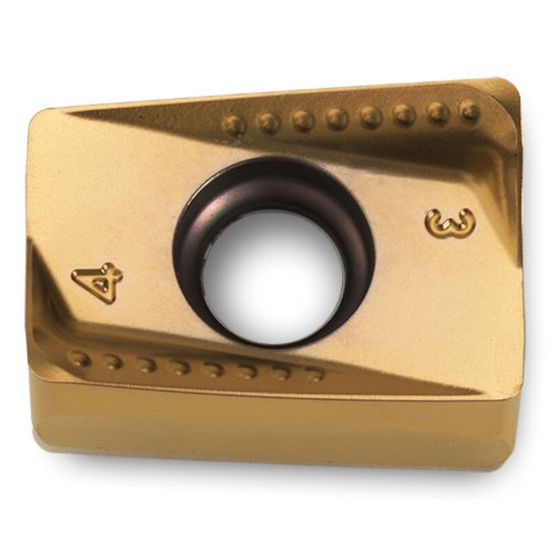

INGERSOLL ANHU160724R IN2505 Milling Insert Paralelagram 0.093 TiAIN + TiN Tetra

ANSI: ANHU160724R IN2505

ISO: ANHU160724R IN2505

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5615855
Delivery date: 3-5 days
$23.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

HARD GRADE FOR STEEL,STAINLESS,IRON AND HIGH TEMP

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAIN + TiN
Package Size 10
Insert Application Roughing, Semi Finishing
Grade IN2505
Insert/Tool Insert
Application Milling Insert
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Corner Radius 0.0930 2.36MM
Insert Size Ic 16
Depth Of Cut Max 0.6300
Cut Rating <48HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cutting Edge Mat Carbide
