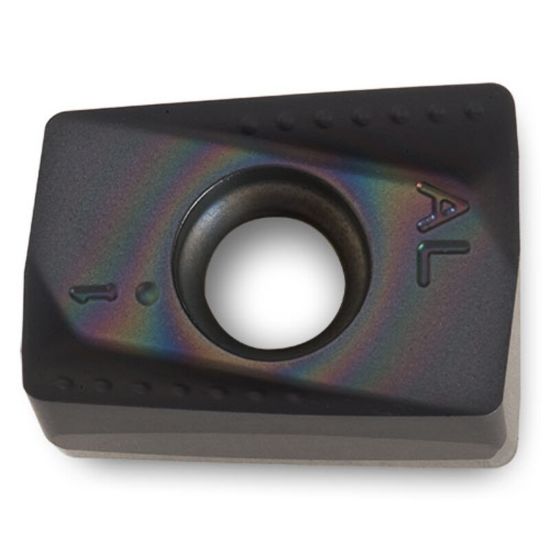

INGERSOLL ANHU160708FR IN2030 Milling Insert Paralelagram 0.031 TiAlN Tetra

ANSI: ANHU160708FR IN2030

ISO: ANHU160708FR IN2030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING5831139
Delivery date: 3-5 days
$23.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

TIALN COATED INSERT FOR STEEL,STAINLESS AND HIGH TEMP GOOD TOUGHNESS

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Shipping State Illinois
Coating TiAlN
Package Size 10
Grade IN2030
Insert Application Semi Finishing, Roughing
Insert/Tool Insert
Application Milling Insert
Made In USA No
Dimensional Specifications
Insert Size Ic 16
Corner Radius 0.0310 0.79MM
Depth Of Cut Max 0.5900
Cut Rating <40HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AN
Cutting Edge Mat Carbide
