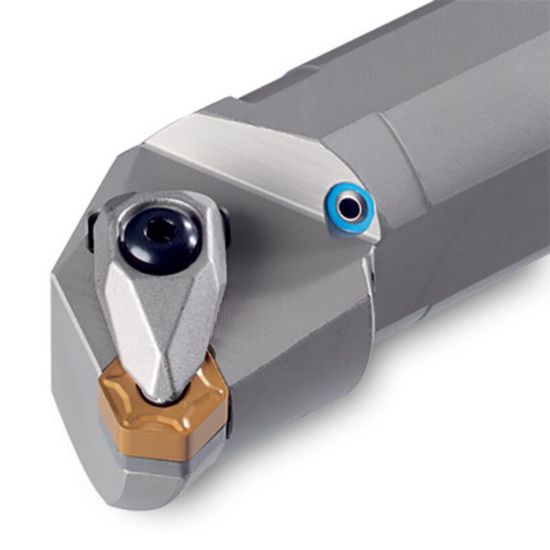

Picture of INGERSOLL A32V-THSNR-4 Turning Boring Bar Hexagon Steel Boring Bar 2.000 Steel

INGERSOLL A32V-THSNR-4 Turning Boring Bar Hexagon Steel Boring Bar 2.000 Steel

ANSI: A32V-THSNR-4

ISO: A32V-THSNR-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3604632
Delivery date: 3-5 days
$570.27

Features And Benefits

T-type-boring bar for internal turning Accepts negative hexagonal inserts Coolant thru

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 2.0000 50.80MM
Overall Len 16.0000 406.40MM
Min Bore 2.4800
Insert Size Ic 05 "45"
Lead Angle 45°
Tool Material Steel
Shank/Pilot Dia 2.0000 50.80MM - 2
Cutting & Machining Properties
Insert Style HN
Inter/Extern Internal
Hand R/L Right
Insert Shape/Cutter Pocket Shape Hexagon
Coolant Thru Yes
