Picture of INGERSOLL A20U-TWLNL-4 Turning Boring Bar Trigon Steel Boring Bar 1.250 Steel

INGERSOLL A20U-TWLNL-4 Turning Boring Bar Trigon Steel Boring Bar 1.250 Steel

ANSI: A20U-TWLNL-4

ISO: A20U-TWLNL-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3603618
Delivery date: 3-5 days
$424.67

Features And Benefits

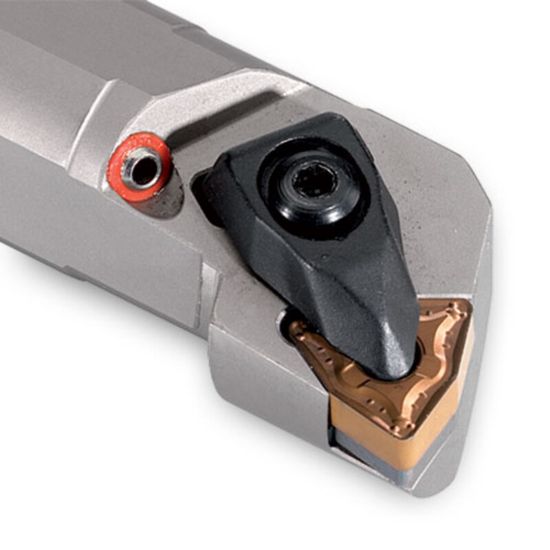

T-type-boring bar for internal turning Accepts negative 80° trigon inserts Coolant thru

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 12 "43"
Lead Angle 95°
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Overall Len 14.0000 355.60MM
Min Bore 1.5000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Hand R/L Left
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
