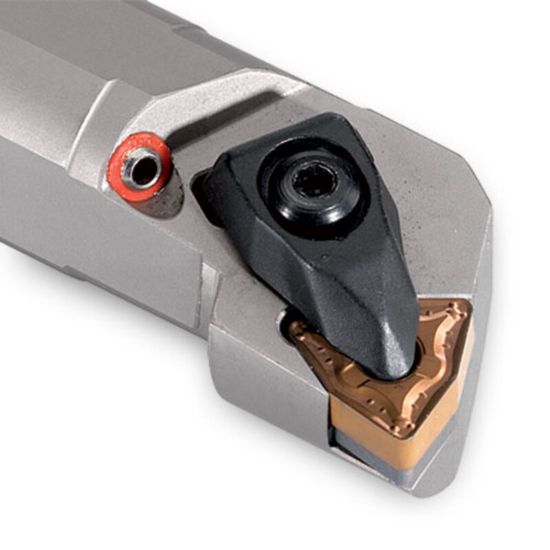

Picture of INGERSOLL A16T-TWLNL-3 Turning Boring Bar Trigon Steel Boring Bar 1.000 Steel

INGERSOLL A16T-TWLNL-3 Turning Boring Bar Trigon Steel Boring Bar 1.000 Steel

ANSI: A16T-TWLNL-3

ISO: A16T-TWLNL-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING6308505
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

T-type-boring bar for internal turning Accepts negative 80° trigon inserts Coolant thru

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Lead Angle 95°
Insert Size Ic 06 "33"
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 12.0000 304.80MM
Min Bore 1.2500
Machine Side Connection Type Boring Bar
Tool Material Steel
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
