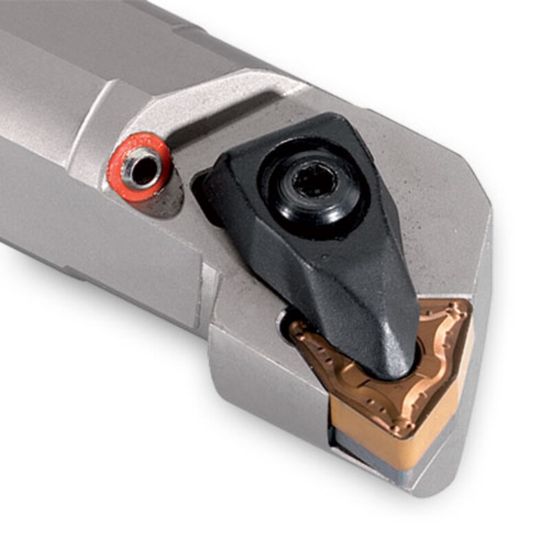

Picture of INGERSOLL A12S-TWLNL-3 Turning Boring Bar Trigon Steel Boring Bar 0.750 Steel

INGERSOLL A12S-TWLNL-3 Turning Boring Bar Trigon Steel Boring Bar 0.750 Steel

ANSI: A12S-TWLNL-3

ISO: A12S-TWLNL-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3603787
Delivery date: 3-5 days
$340.67

Features And Benefits

T-type-boring bar for internal turning Accepts negative 80° trigon inserts Coolant thru

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Package Size 1
Insert Type Negative
Made In USA No
Dimensional Specifications
Insert Size Ic 06 "33"
Overall Len 10.0000 254.00MM
Lead Angle 95°
Machine Side Connection Size 0.7500 19.05MM
Tool Material Steel
Min Bore 1.0000
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Inter/Extern Internal
