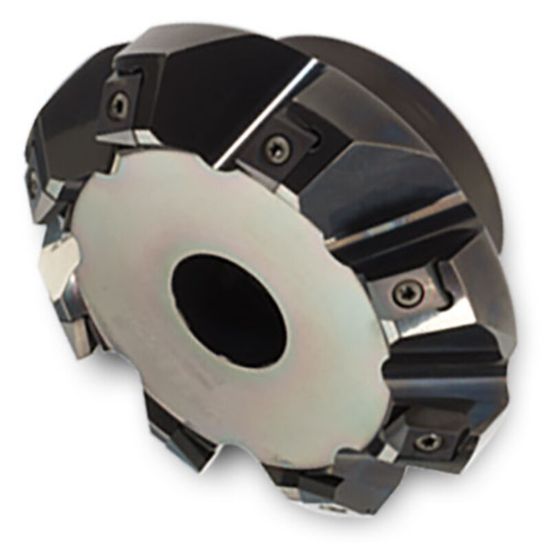

Picture of INGERSOLL 9N6A-02R01 Milling Cutter 44.0° 2.000 Shell Arbor 0.7500 4 Flute 0.31 Max DOC 1.750 OAL

INGERSOLL 9N6A-02R01 Milling Cutter 44.0° 2.000 Shell Arbor 0.7500 4 Flute 0.31 Max DOC 1.750 OAL

ANSI: 9N6A-02R01

ISO: 9N6A-02R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING2907292
Delivery date: 3-5 days
$531.07

Details

HEAVY ROUGHING ON EDGE POCKET. IF YOU HAVE STOC TO REMOVE FAST THIS IS YOUR TOOL. HIGH HORSE POWER MACHINES NEEDED.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing
Made In USA No
Shipping State Illinois
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.3100
Overall Len 1.7500 44.45MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Tool Material Steel
Cutter Dia 2.0000 50.80MM
Insert Size Ic 32
Cut Dia Max 2.6420 67.11MM
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Coolant Thru No
Insert Style LS
