  • INGERSOLL 5W7K-40R01 Milling Cutter Button Cutter 4.000 Shell Arbor 1.2500 7 Flute 0.315 Max DOC 2.000 OAL

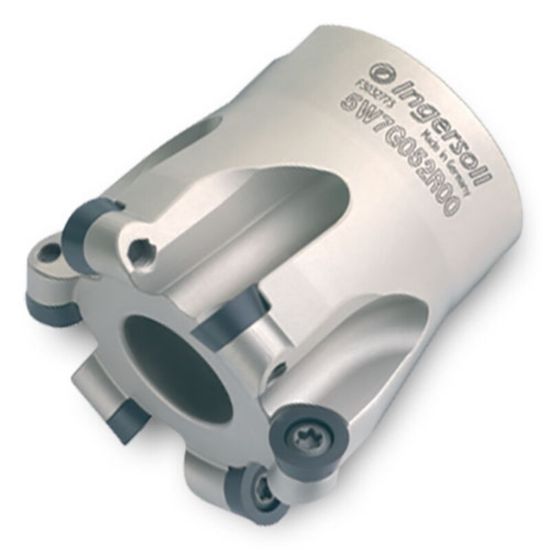

Picture of INGERSOLL 5W7K-40R01 Milling Cutter Button Cutter 4.000 Shell Arbor 1.2500 7 Flute 0.315 Max DOC 2.000 OAL

INGERSOLL 5W7K-40R01 Milling Cutter Button Cutter 4.000 Shell Arbor 1.2500 7 Flute 0.315 Max DOC 2.000 OAL

ANSI: 5W7K-40R01

ISO: 5W7K-40R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017076
Delivery date: 3-5 days
$952.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Round Milling
Shipping State Illinois
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 2.0000 50.80MM
Depth Of Cut Max 0.3150
Flutes/Inserts 7
Insert Size Ic 16
Cut Dia Max 4.0000 101.60MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Insert Style RH
Coolant Thru No
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 3.50°
