  • INGERSOLL 5W7K-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.315 Max DOC 2.000 OAL

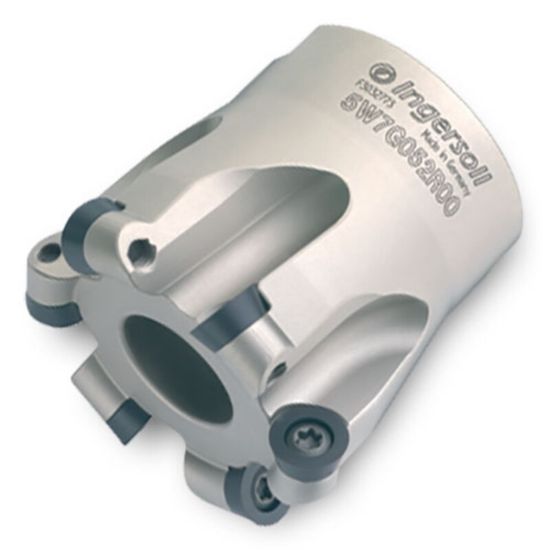

Picture of INGERSOLL 5W7K-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.315 Max DOC 2.000 OAL

INGERSOLL 5W7K-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 4 Flute 0.315 Max DOC 2.000 OAL

ANSI: 5W7K-20R01

ISO: 5W7K-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017073
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Round Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.3150
Flutes/Inserts 4
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 6.00°
Insert Shape/Cutter Pocket Shape Round
Insert Style RH
