  • INGERSOLL 5W7G-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 6 Flute 0.197 Max DOC 1.625 OAL

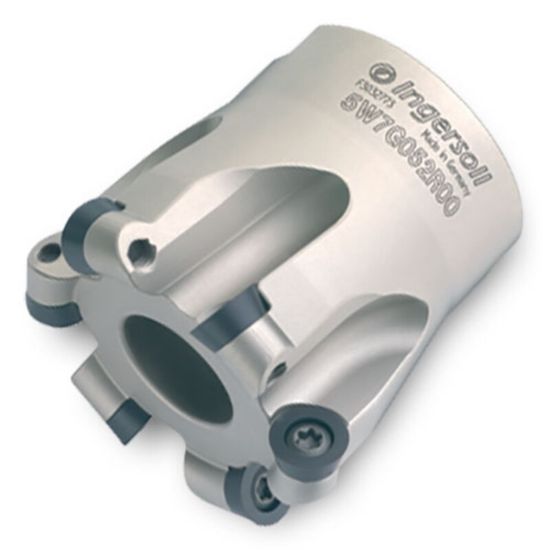

Picture of INGERSOLL 5W7G-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 6 Flute 0.197 Max DOC 1.625 OAL

INGERSOLL 5W7G-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 6 Flute 0.197 Max DOC 1.625 OAL

ANSI: 5W7G-20R01

ISO: 5W7G-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3017070
Delivery date: 3-5 days
$567.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Made In USA No
Package Size 1
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Insert Size Ic 10
Machine Side Connection Size 0.7500 19.05MM
Overall Len 1.6250 41.28MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 6
Depth Of Cut Max 0.1970
Tool Material Steel
Cut Dia Max 2.0000 50.80MM
Cutting & Machining Properties
Max Ramp Angle 4.50°
Insert Shape/Cutter Pocket Shape Round
Insert Style RH
Coolant Thru No
