  • INGERSOLL 5W6S-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 1.2500 2 Flute 0.5 Max DOC 2.500 OAL

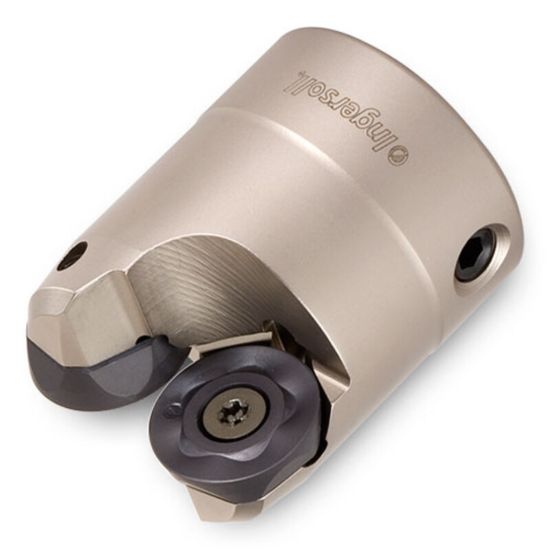

Picture of INGERSOLL 5W6S-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 1.2500 2 Flute 0.5 Max DOC 2.500 OAL

INGERSOLL 5W6S-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 1.2500 2 Flute 0.5 Max DOC 2.500 OAL

ANSI: 5W6S-20R01

ISO: 5W6S-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3028292
Delivery date: 3-5 days
$483.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application Roughing, Semi Finishing
Application Round Milling, Ramp Milling, Pocket Milling, Face Milling
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Overall Len 2.5000 63.50MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 2
Cutter Dia 2.0000 50.80MM
Cut Dia Max 2.0000 50.80MM
Depth Of Cut Max 0.5000
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 25
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Max Ramp Angle 1.00°
Insert Style RP
Coolant Thru No
