  • INGERSOLL 5W6J-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.25 Max DOC 1.570 OAL

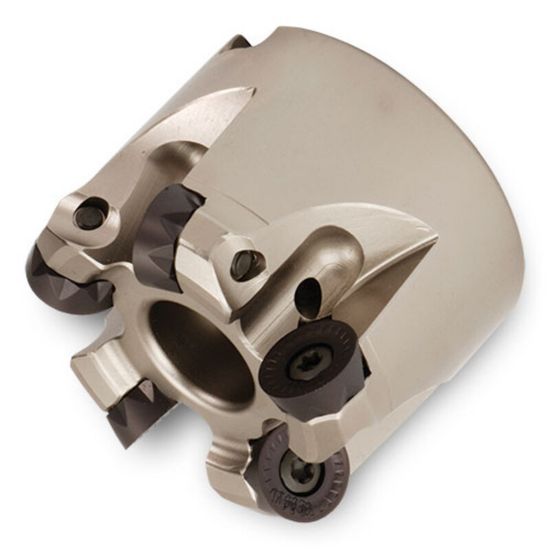

Picture of INGERSOLL 5W6J-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.25 Max DOC 1.570 OAL

INGERSOLL 5W6J-20R01 Milling Cutter Button Cutter 2.000 Shell Arbor 0.7500 5 Flute Coolant 0.25 Max DOC 1.570 OAL

ANSI: 5W6J-20R01

ISO: 5W6J-20R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: ING3026026
Delivery date: 3-5 days
$613.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Round Milling, Face Milling, Pocket Milling, Ramp Milling
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 1.5700 39.88MM
Flutes/Inserts 5
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2500
Cut Dia Max 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Insert Size Ic 12
Cut Dia Min 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Insert Style RC
Coolant Thru Yes
Max Ramp Angle 7.50°
Insert Shape/Cutter Pocket Shape Round
